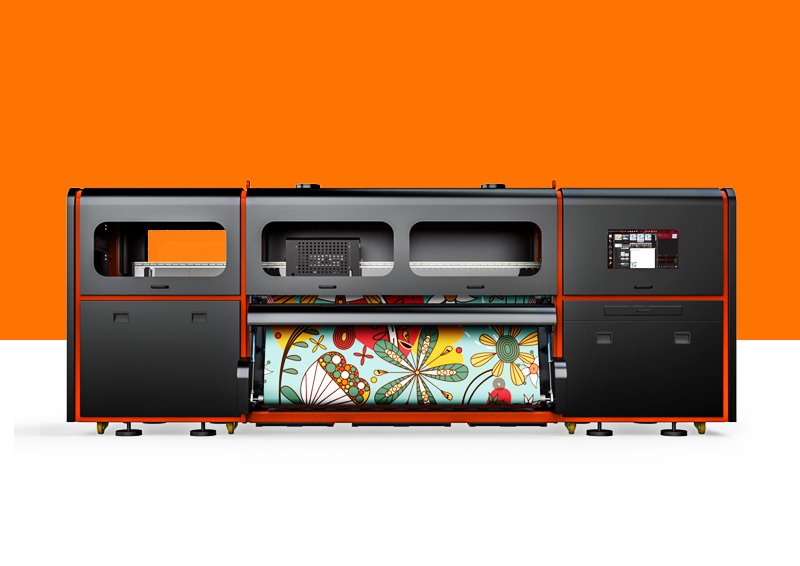

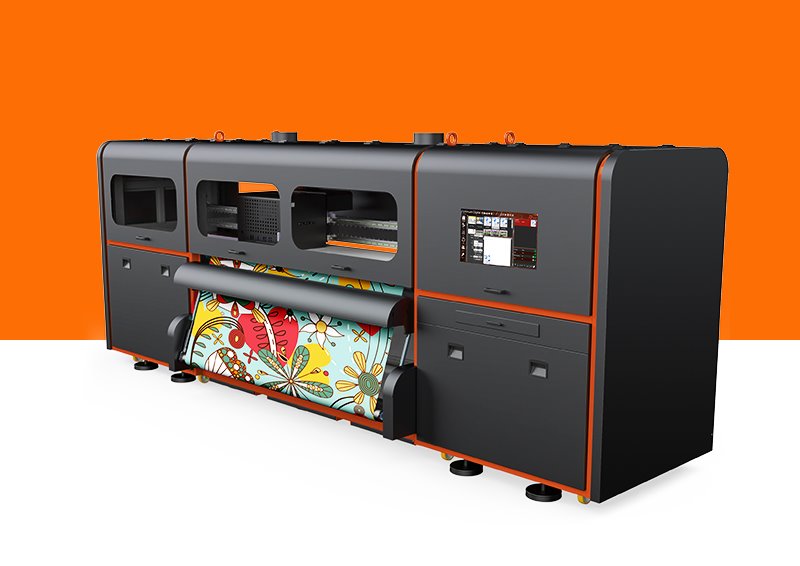

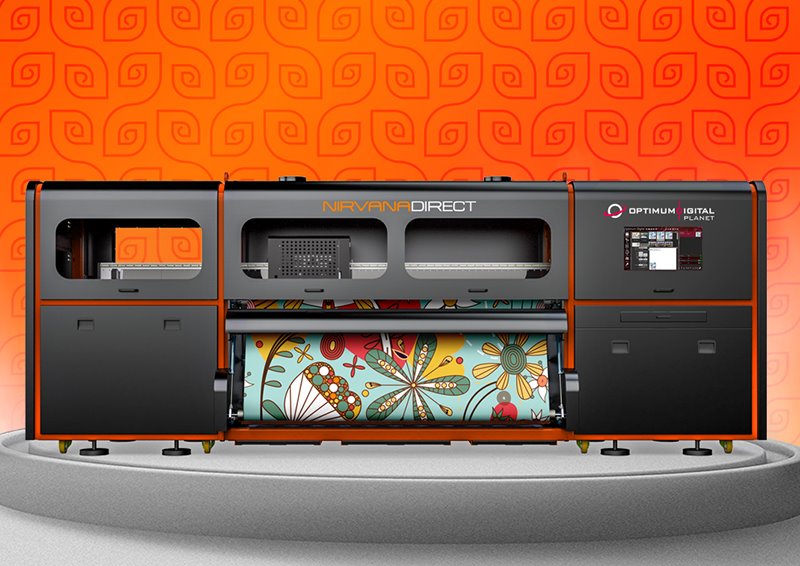

Wide Width Home Textile Printer

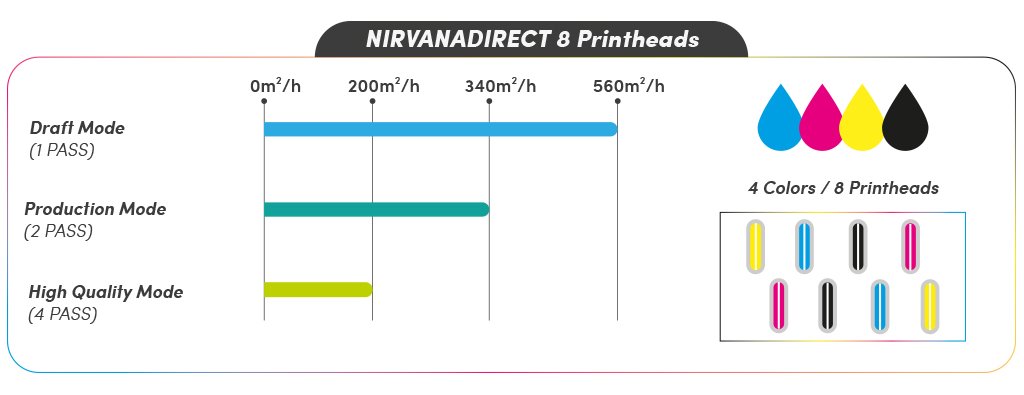

Print Speed: 560m²/h

Printing Width: 2.1m & 3.2m

Only Non-Elastic Fabrics: Cotton, Polyster, Poly-Cotton, Nylon, Silk, Viscose, Linen,Denim Etc.

Application Areas: Fabrics, Bed-Sheets, Curtains, Dresses, Bags, Pillows, Furniture, Upholstery, Custom Etc.


Technical Specifications

Default Printhead

Konica Minolta

Variable Drop 6pl - 73pl
Printhead Options 4 / 6 / 8 / 12 / 16 (max 2 rows)
Color Options 4 color - 6 color - 8 color

Ink Compatibility

Disperse / Sublimation / Reactive / Pigment / Acid

Ink Tank System Open System - 5kg capacity
Printing Width 2.1m & 3.2m

Media Type

Elastic and non-elastic textiles

Media Drying System

Industrial Drying System

Media Feeding System

Included Feeding System

Max Media Weight

250 kg / 45 cm diameter

RIP Software

Neo-Stampa Optimum Digital Special Edition
Caldera Textile Pro Enterprise

Graphical User Interface (GUI)

ODP Print 2

Power Requirement

Single Phase: 220 VAC / 25A (for machine)
Three Phase: 220 VAC / 32A (for dryer)

Printer Dimensions

5500 mm x 2700 mm x 1500 mm

Compressed Air

0,6 MPa @ 2L / min

Net Printer Weight

2800 kg

Net Machinery Weight

3500 kg

Machine Features Printing Features
Smart automatic head cleaning system Potential for uninterrupted 24/7 printing operations
Integrated hybrid drying unit under machine Low vibrations from strong frame for accurate dotting
Integrated vacuum generator with compressed air Up to 1,100lbs (500kg) and 18” (70cm/ 27.5) diameter media rolls
IGUS energy chains for smooth motion control Reliable printing and drying at 6,027sqf/h (560sqm/h)
Aluminium frame and double carriage rail Spare-parts and inks inventory at all locations
Unwinder/winder dancing tension system (no pinch rollers) In-house color specialist for customized color profiling

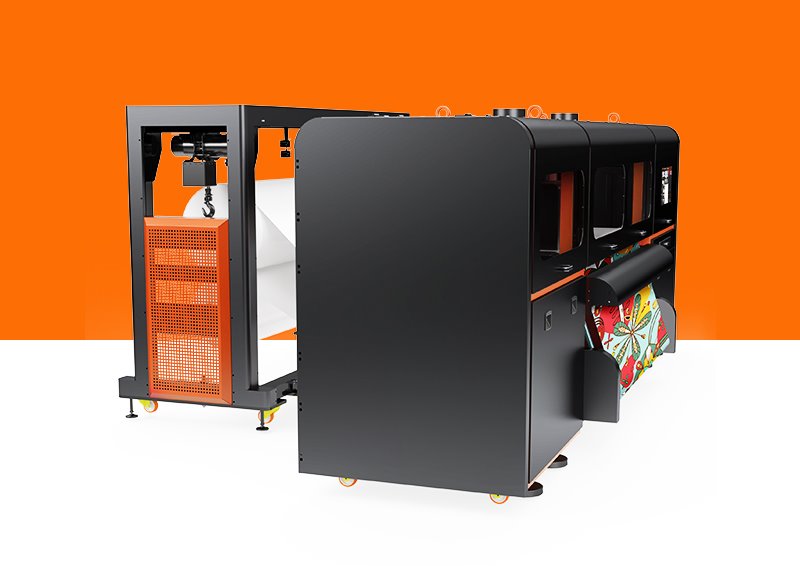

Patented industrial jumbo roll feeder with airshaft rolls
Safety trigger system for printhead protection
Closed design system for safe operation and reduced noise
