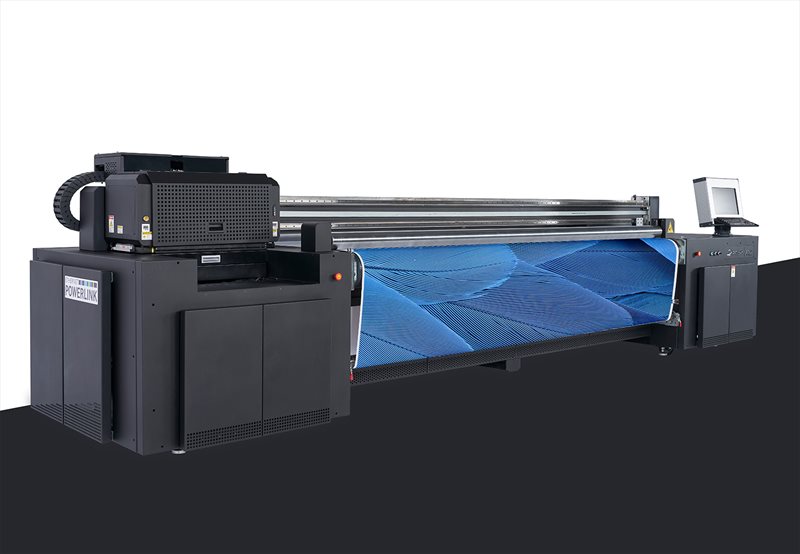

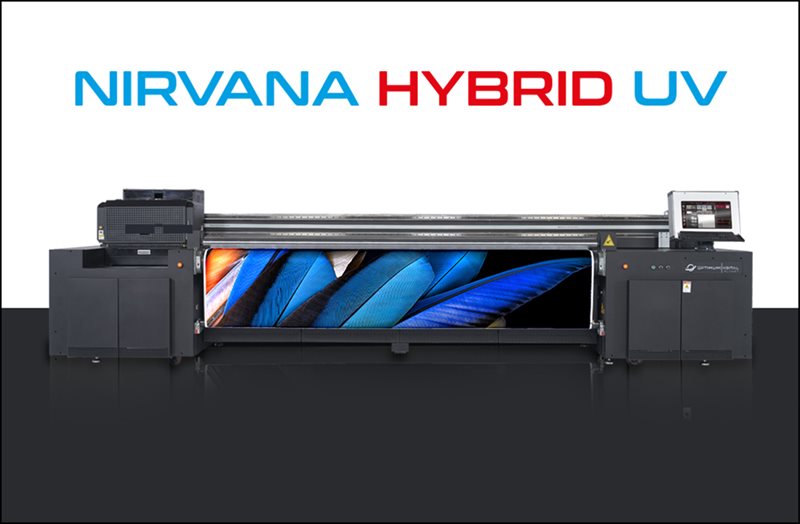

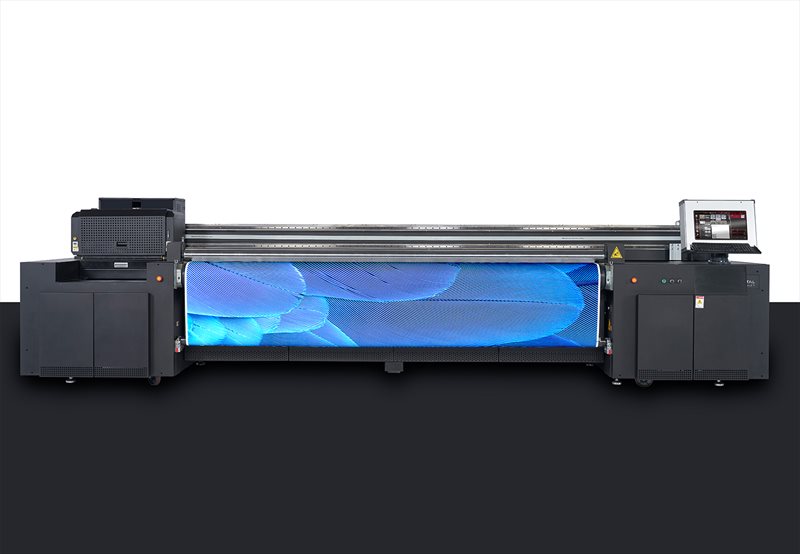

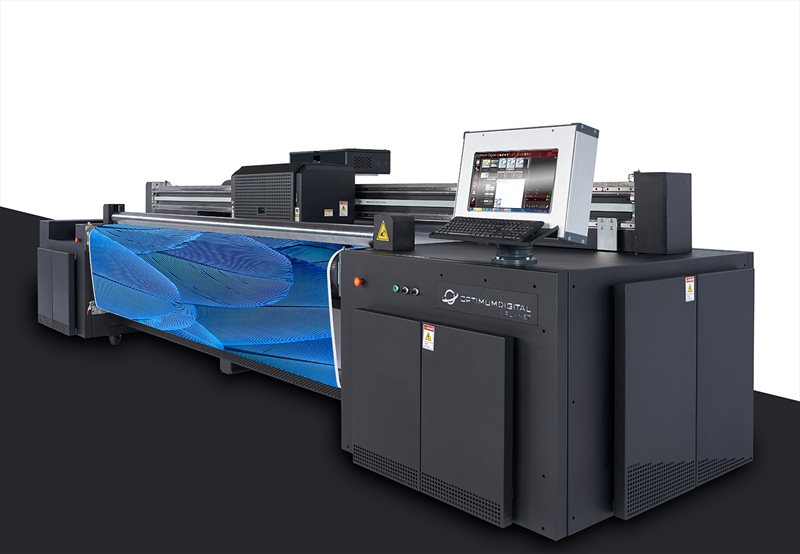

UV PRINTER

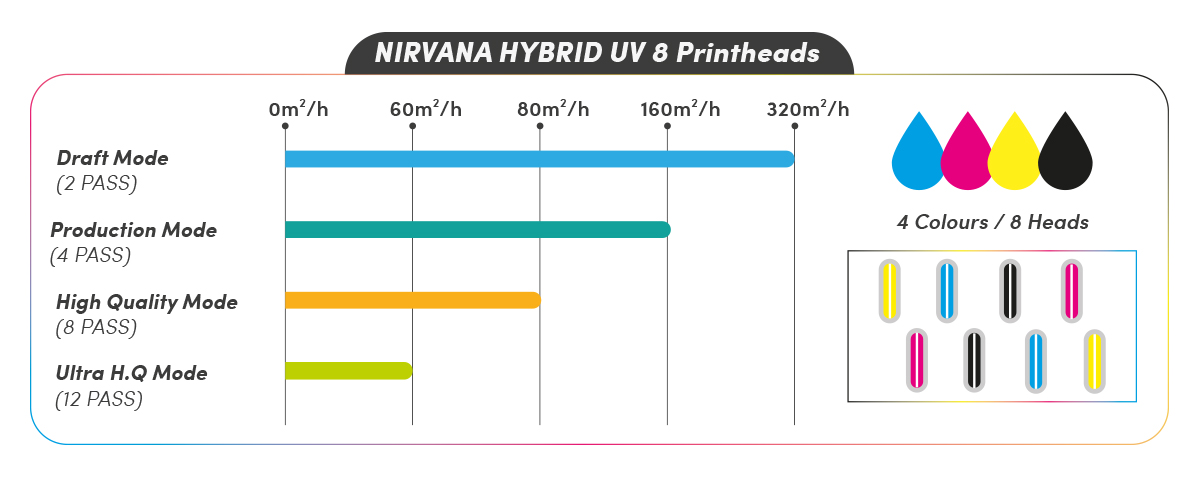

✓ Print Speed: 320m²/h

✓ Print Head: Kyocera

✓ Print Width: 3200mm

Bounded by Your Dreams...

Plexiglass Printing, Aluminium Printing, Glass Printing, Mdf Printing, Styropor Printing, Carton- Cardboard Printing
Drop on Demand Piezo Inkjet Technology,
Printing up to 60mm thickness

Print Width

Up to 3200 mm

Technology

Drop - On - Demand Piezo Inkjet Technology

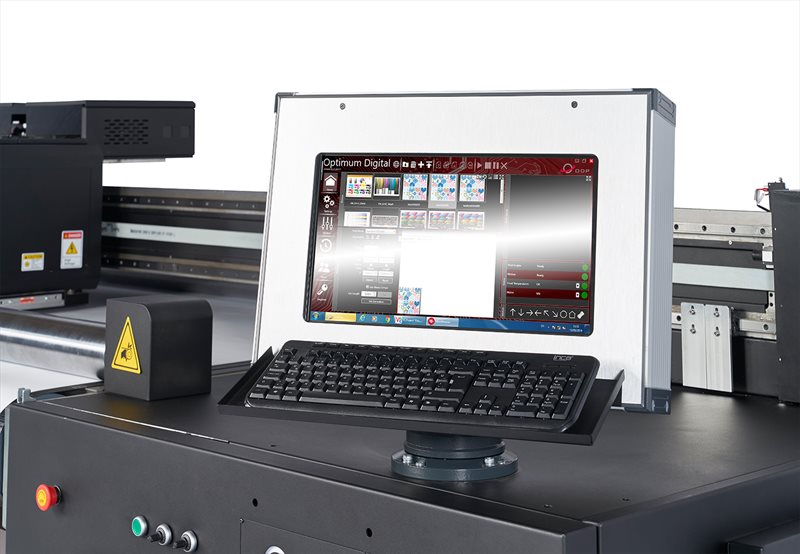

Control System

PLC System

Color Scale

4 Colours (CMYK) and White UV Curable Inks

Optional Colours LC-LM and Varnish

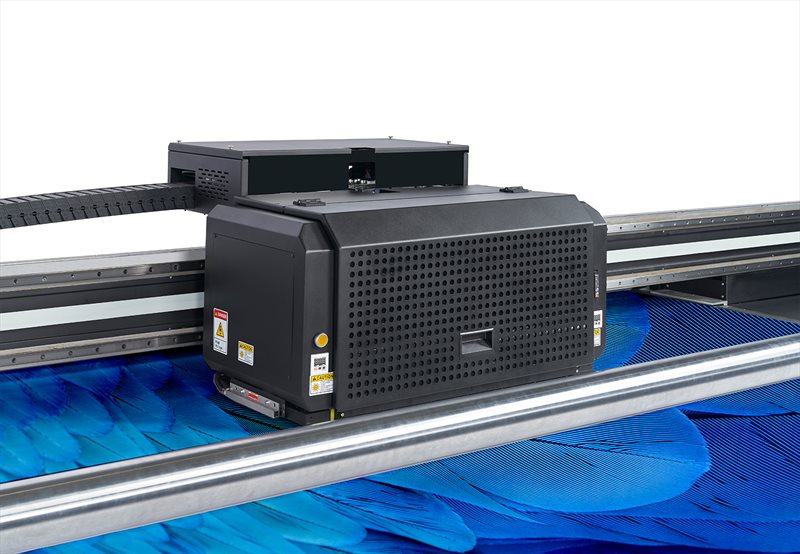

Printhead

Kyocera KJ4A 4pL

Printhead Quantity Up to 10

Resolutions

Up to 1200 DPI

Material Types

Plexiglass, Aluminium, Glass, Mdf, Styrofoam,Carton-Cardboard

Material Thickness

Up to 60 mm

Curing System

14 W/cm² Water Cooled LED Curing Technology

RIP Software

Caldera

Temperature 20°C to 30°C
Humidity 30% to 80%

Machine Weight

2800 kg.

Dimensions

5500x2800x1800 mm

Power Requirement

60 Amps, 230 VAC supply
