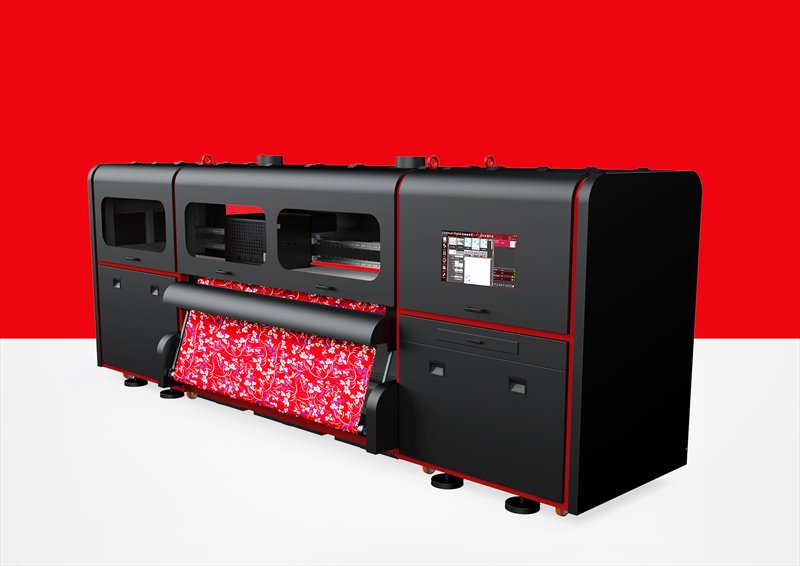

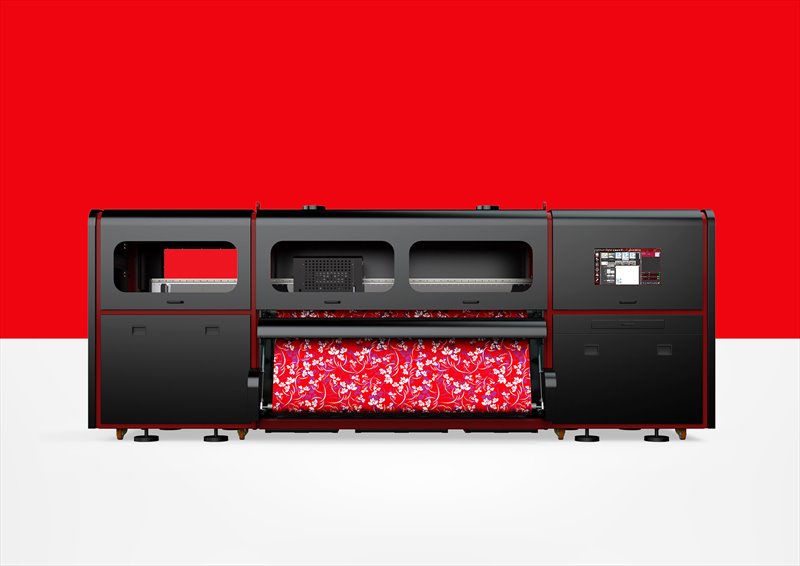

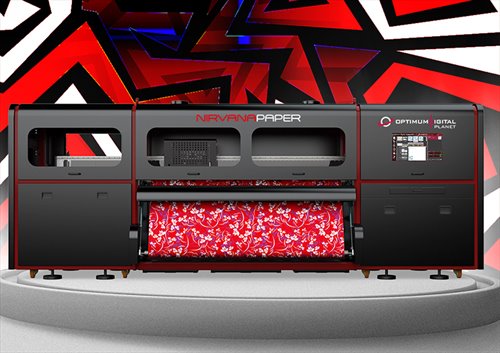

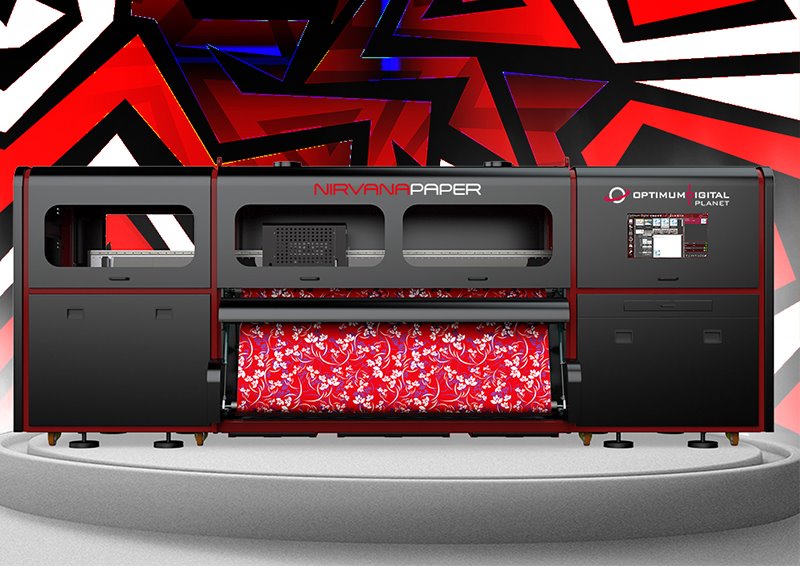

Dye-Sublimation & Bilboard Paper Printer

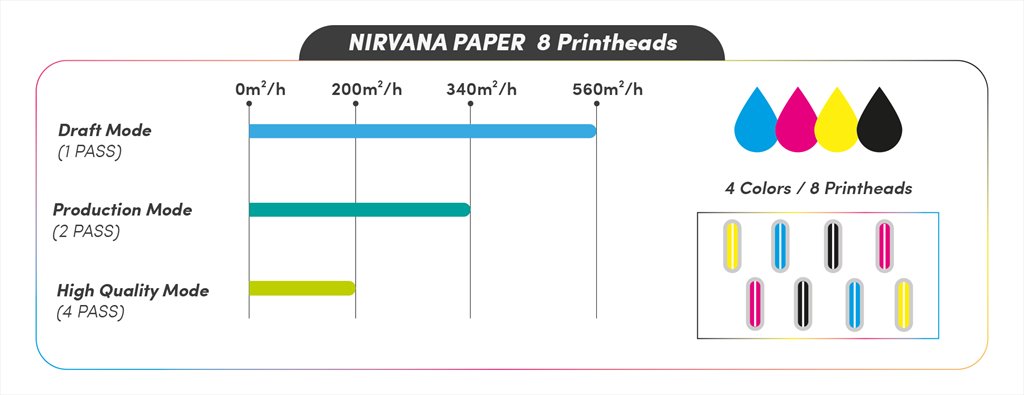

Print Speed: 560m²/h

Printing Width: 2.5m and 3.2m

Industrial Jumbo Roll Paper Handling: 1000+kg per roll


Default Printhead Kyocera KJ4B - Konica Minolta 1024i
Variable Drop 5pl - 73pl
Printhead Options 4 / 6 / 8 / 12 / 16 (max 2 rows)
Color Options 4 color - 6 color - 8 color

Ink Compatibility

Dye-Sublimation / Disperse

Ink Tank System Open System - 5kg capacity
Printing Width 2050 mm
Default Printhead Kyocera KJ4B - Konica Minolta 1024i
Variable Drop 5pl - 73pl
Printhead Options 4 / 6 / 8 / 12 / 16 (max 2 rows)
Color Options 4 color - 6 color - 8 color

Ink Compatibility

Dye-Sublimation / Disperse

Ink Tank System Open System - 5kg capacity
Printing Width 2050 mm

Media Type

Paper, non-elastic textile, plastic film

Media Drying System

Integrated Hybrid Drying System

Media Feeding System

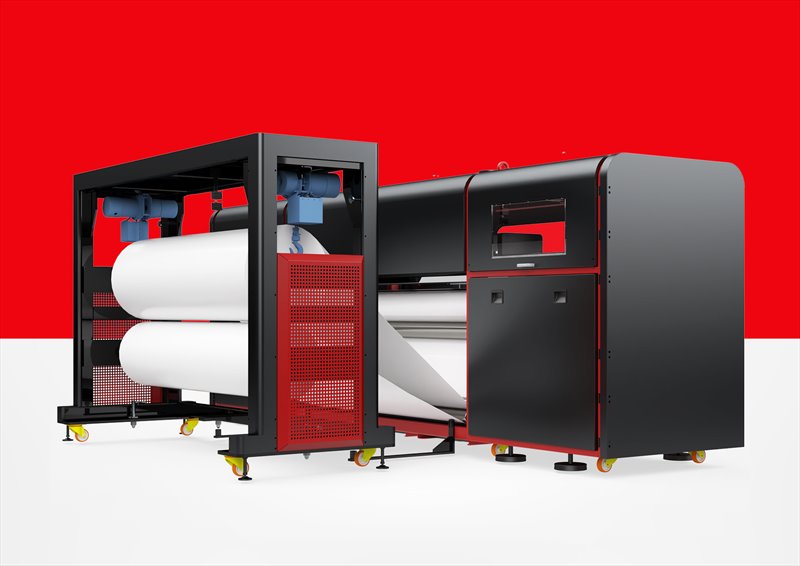

Industrial Jumbo Roll Feeder
Vacuum System

Max Media Weight

500 kg / 27,5 cm diameter

RIP Software

Neo-Stampa Optimum Digital Special Edition
Caldera Textile Pro Enterprise

Graphical User Interface (GUI)

ODP Print 2

Power Requirement

Single Phase: 220 VAC / 25A

Printer Dimensions

5500 mm x 2700 mm x 1500 mm

Compressed Air

0,6 MPa @ 2L / min

Net Printer Weight

2600 kg

Net Machinery Weight

3500 kg

Machine Features Printing Features
Smart automatic head cleaning system Potential for uninterrupted 24/7 printing operations
Integrated hybrid drying unit under machine Low vibrations from strong frame for accurate dotting
Integrated vacuum generator with compressed air Up to 1,100lbs (500kg) and 18” (70cm/ 27.5) diameter media rolls
IGUS energy chains for smooth motion control Reliable printing and drying at 6,027sqf/h (560sqm/h)
Aluminium frame and double carriage rail Spare-parts and inks inventory at all locations
Unwinder/winder dancing tension system (no pinch rollers) In-house color specialist for customized color profiling
Patented industrial jumbo roll feeder with airshaft rolls
Safety trigger system for printhead protection
Closed design system for safe operation and reduced noise



Spor Giyim BaskısıSportwear Prints



dosemeli-kumas-baskiUpholstery Fabrics



duvar kağıdıWallpaper Prints

hali baskiCurtain Prints

uygulamatekstil 0003 masaörtüsü tablecloth-358x232Table Clothes

Yastık-yorgan-kiliflari-BaskiDecorative Paper Prints



bayrak baskıFlag Prints



Çarşaf Baskı Sheet Prints



Elbise Baskı Dress Prints
